ALUMINIUM Sliding Doors
Panorama aluminium sliding patio doors form part of the Ultimate Collection from John Fredericks – a range of windows and doors designed around quality, performance and reliability.
Manufactured using the Smart Systems Visoglide Plus system, Panorama offers installers a practical and versatile aluminium sliding patio door solution for homeowners, architects and developers.
Available in lift-and-slide and inline sliding configurations, the system combines slim aluminium sightlines with generous areas of glass, allowing installers to create bright, spacious interiors while making the most of external views.
For trade installers, Panorama combines a proven aluminium system with John Fredericks’ manufacturing expertise, technical support and dependable service.
aluminium Lift & Slide and Sliding doors – at a glance
- Smart Visoglide Plus profile
- Sliding and Lift & Slide options
- Twin or triple track options
- Overall system depth
• Frame: Twin track: 118mm, Triple track: 185mm
• Sash: 74mm (Slider), 90mm (Lift & Slide) - Square knock-in co-extruded glazing bead as standard (28mm)
- 3* Yale cylinder
- 35mm meeting section, optional 83mm (Slider), optional 99mm (Lift & Slide)
- Mitred outer frame and sashes
- Thermal break – fibreglass reinforced polyamide strips
- Maximum sash width: No maximum width**
- Maximum sash height: 2500mm
- Maximum sash weight: 250kg (Slider), 200kg (Lift & Slide)
- Typical sightline: 117mm (outerframe) and 83mm (interlock)
- Glazing: Standard 28mm double glazed toughened
- Cill options: 2
- Thermal performance: As low as 1.6 W/m²K (1.0 centre pane)*
- Security: PAS24:2022*
*Subject to style and specification.
**Within height/weight limitations there is no maximum width.

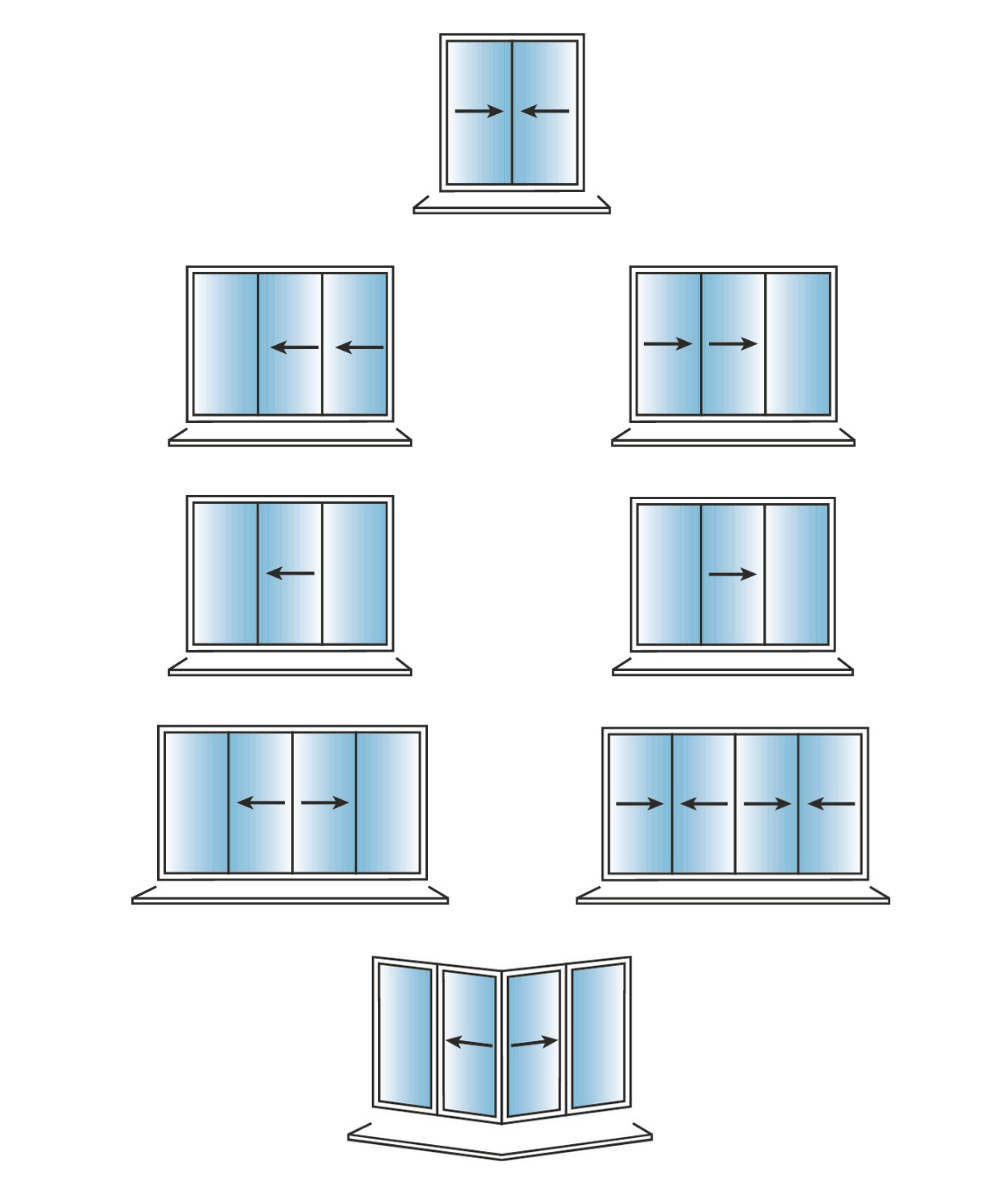

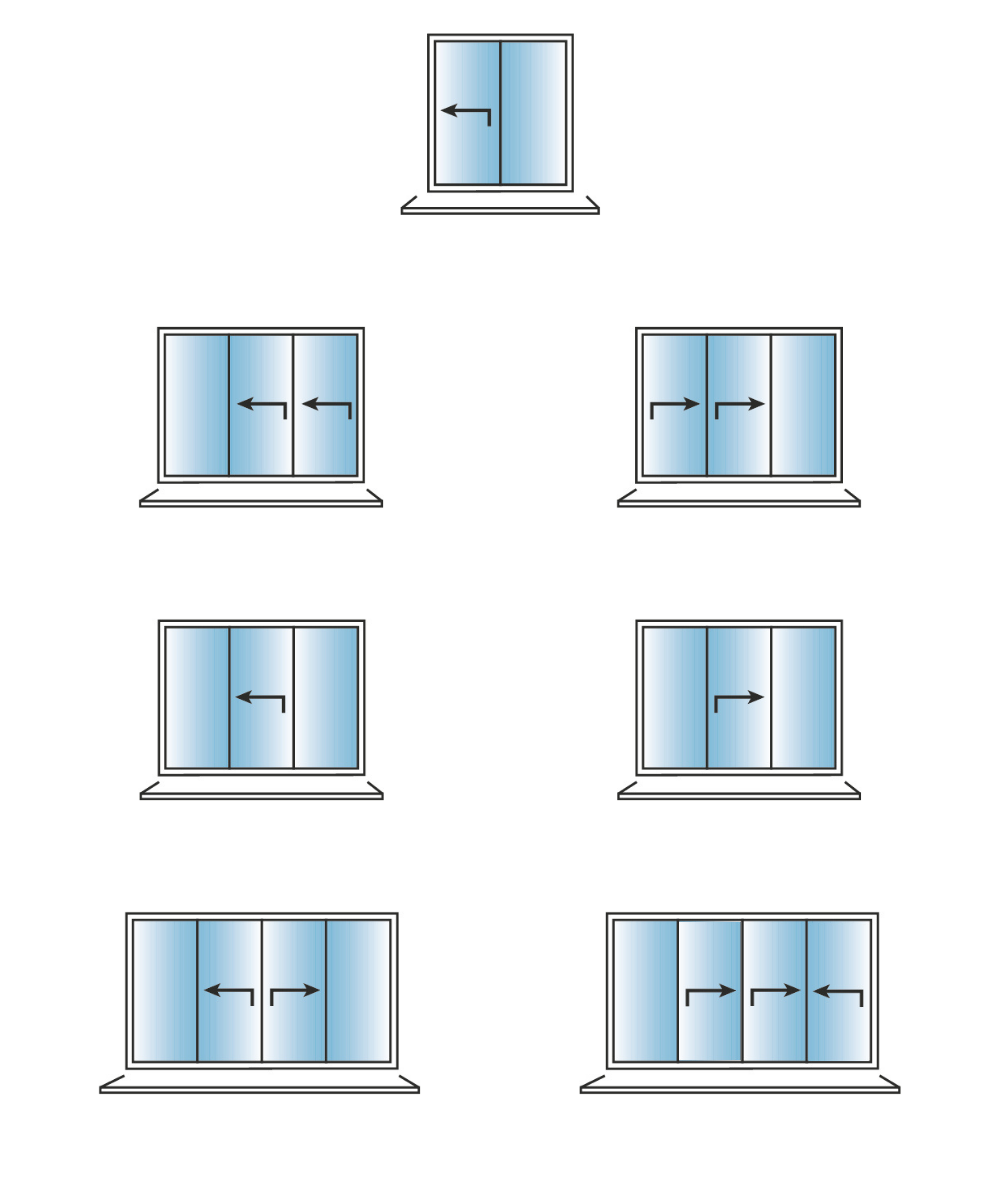

Choose the Right Sliding Door Configuration
PANORAMA aluminium sliding doors are available in two operating styles to suit different project requirements.

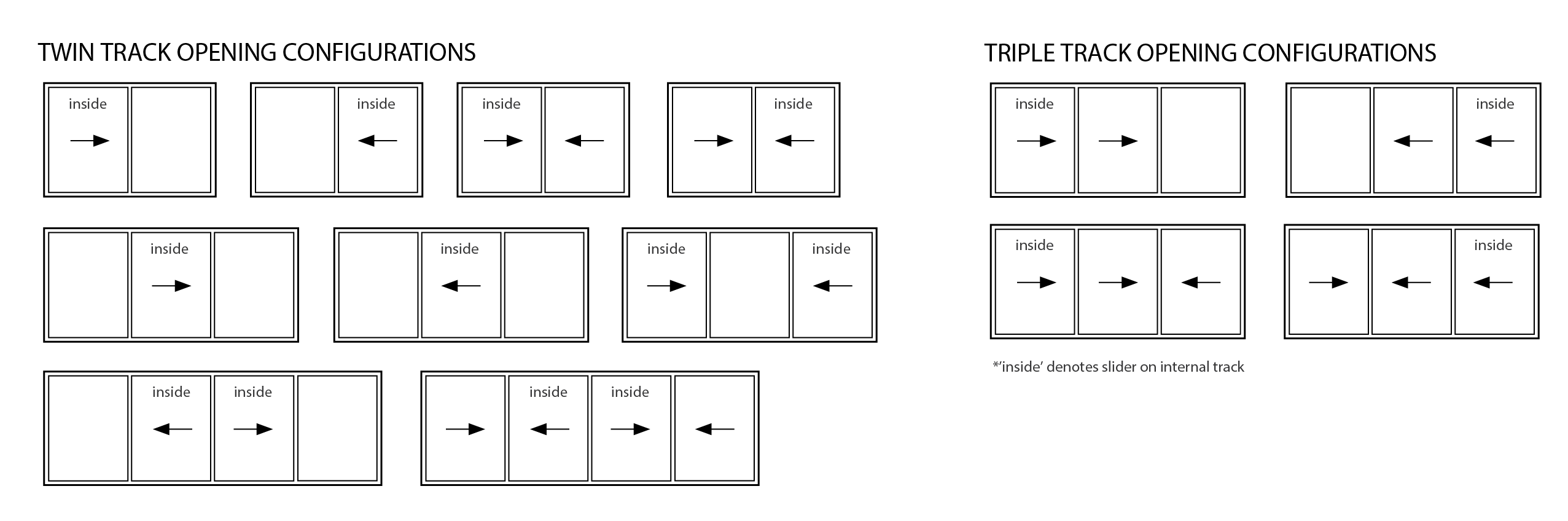

Choose from twin or triple track systems, depending on the width of the opening and your preferred configuration of fixed panes and sliding doors.

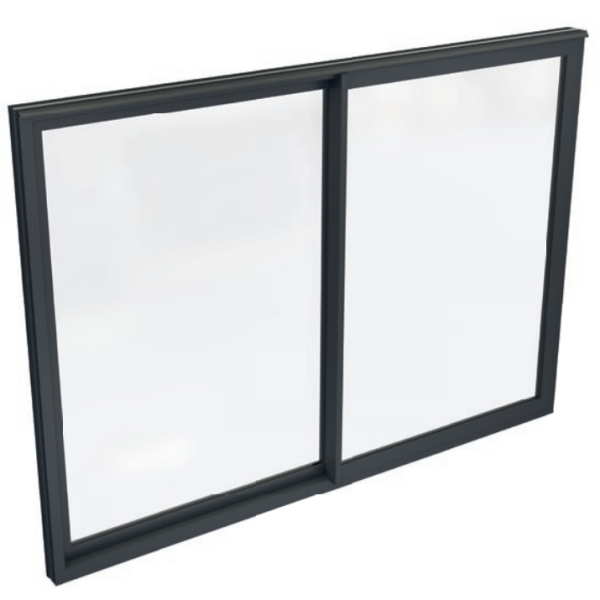

Lift & Slide Doors
The Panorama Lift & Slide door uses a lifting mechanism to raise the sliding sash slightly from the seals before it moves along the track. This reduces friction and allows large glazed door panels to open smoothly and easily. When closed, the sash lowers back onto the track to help maintain weather performance.

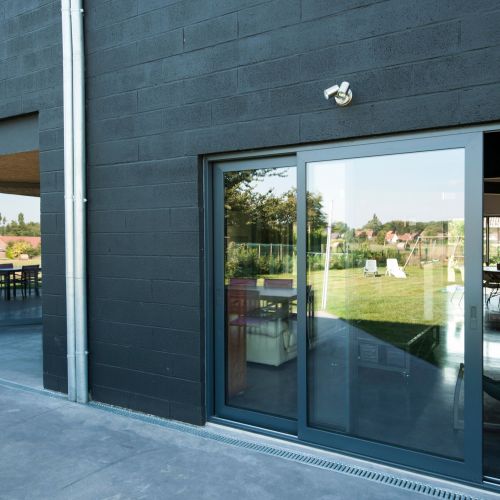

Inline Sliding Doors
The Panorama Inline Sliding door provides a straightforward sliding patio door solution where the door panels move along the track without the lift-and-slide mechanism. This offers a practical, reliable option for projects where smooth horizontal sliding and generous glazed areas are the priority.

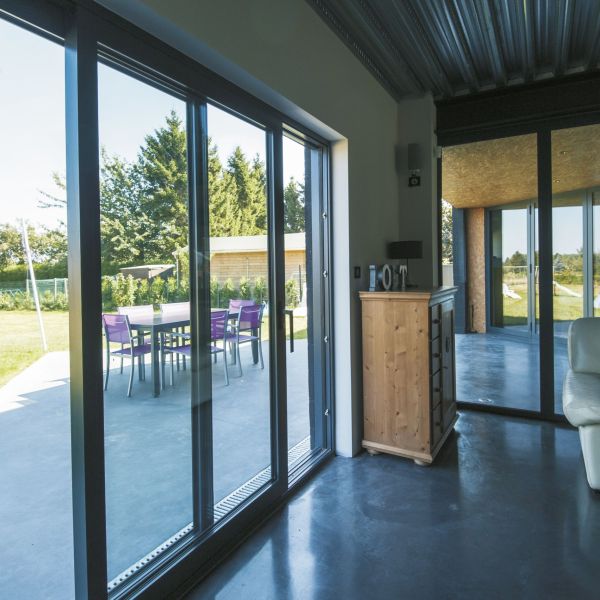

Large Glass Areas. Slim Aluminium Frames.

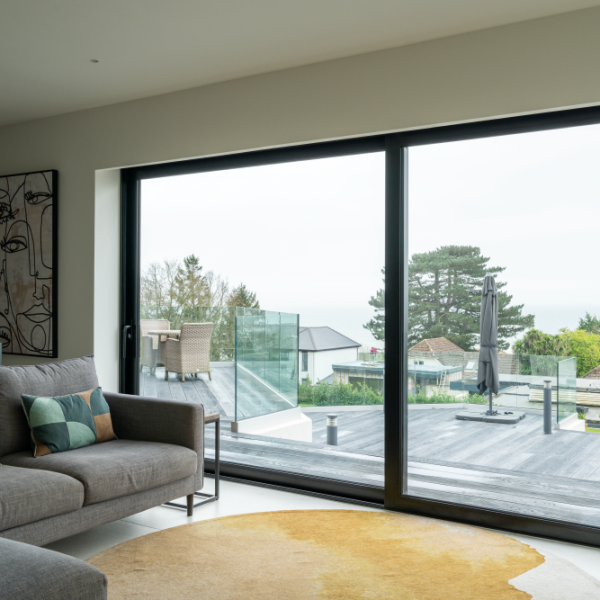

Panorama sliding doors are designed to make the most of the available opening aperture, combining robust aluminium construction with slim sightlines and generous areas of glazing.
The result is a clean, modern appearance that helps bring natural light into the property and provides uninterrupted views of the garden or outside space.
For installers, aluminium offers the strength required to create large glazed openings while maintaining a sleek appearance.
Smooth and Easy Operation
The Panorama sliding door system has been developed to provide reliable sliding performance across residential applications.
The lift-and-slide configuration raises the door sash before it moves, reducing friction and helping make even larger, heavier door panels easier to operate.
The system uses stainless steel rollers and a thermally broken aluminium profile, providing a combination of durability, smooth operation and performance.
Thermal Efficiency
Panorama aluminium sliding doors feature a thermally broken aluminium profile designed to help reduce heat transfer between the inside and outside of the property.
The Smart Visoglide Plus system can achieve a U-value as low as 1.6 W/m²K with a 1.0 W/m²K centre pane. It features 28mm double glazed, toughened units as standard.
For installers, this provides a practical aluminium sliding door solution that combines large glazed areas with the thermal performance required for modern residential applications.

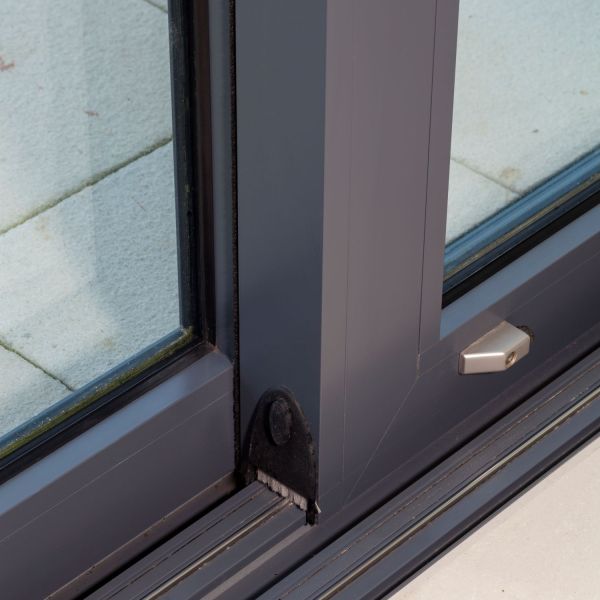

Thresholds & Cills
Where the project specification allows, the threshold of the doors can be recessed into the floor level for a reduced step height, for improved accessibility.
For more standard installations, we offer a choice of 2 cill options – 215mm and 300mm.
Safe, Secure & Durable
Aluminium is naturally strong, durable and low maintenance, making it particularly well suited to large glazed door openings.
Panorama sliding doors use a robust aluminium profile with a polyamide thermal break, while the sliding hardware is designed to provide reliable operation over the long term.
All doors are manufactured to your exact specifications by John Fredericks using the Visoglide Plus system; a well-established aluminium sliding door platform used across residential projects throughout the UK.
Security is built into the design of every Panorama sliding and lift-and-slide door. The sliding system features a shootbolt lock with night vent keep, whilst the lift & slide system has the option of 2 hook bolts or 4 pegs, depending on design specification.
COLOUR & FINISH OPTIONS
PANORAMA aluminium inline sliding doors and lift-and-slide doors are available in a choice of standard colours. For projects requiring a more bespoke appearance, any RAL colour is also available.
*RAL colours and additional dual-colour options available on an extended leadtime.
Please note that colour swatches are for illustrative purposes only. Not all colours are available across every profile or product range. Please refer to the PANORAMA colour guide for current availability.
DOOR FURNITURE
Choose from a range of handle finishes to complement your sliding door’s aluminium frame and overall design.

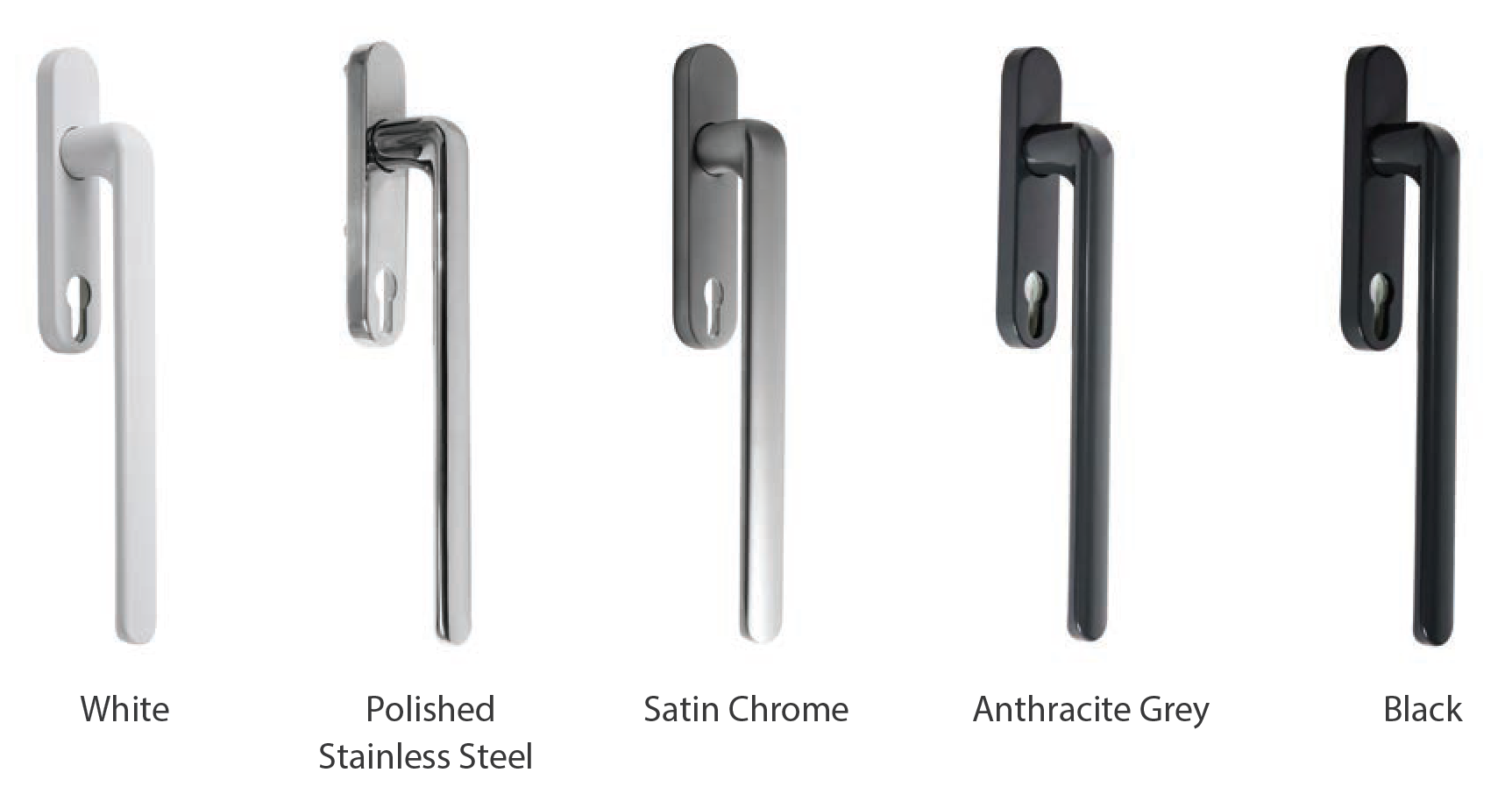

Our Lift and Slide Patio Door handles are available in these 5 colour finishes, with finger pull cups to match: White, Polished Stainless Steel, Satin Chrome, Anthracite Grey & Black.
For Sliding Patio Doors, our finger pull cups are available in White, Black and Anthracite Grey.
A Reliable Trade Partner
John Fredericks has been manufacturing high-quality windows and doors for almost 60 years, combining trusted system partners with its own manufacturing expertise.
Our focus goes beyond the product itself. With dedicated customer service, reliable lead times, nationwide delivery and expert technical support, we’re committed to helping installers succeed from quotation through to delivery.
We also provide product literature, branded brochures, digital assets and other marketing resources to help our customers promote their businesses and win more work.
More than a supplier. A partner since 1970.
Ready to Specify PANORAMA Sliding doors?
Whether your project requires a practical inline sliding door or the enhanced operation of a lift-and-slide system, PANORAMA provides a versatile aluminium solution backed by John Fredericks’ manufacturing and trade support.
